BME ELECTRICAL (NI) LTD
High and Low Voltage Electrical Services

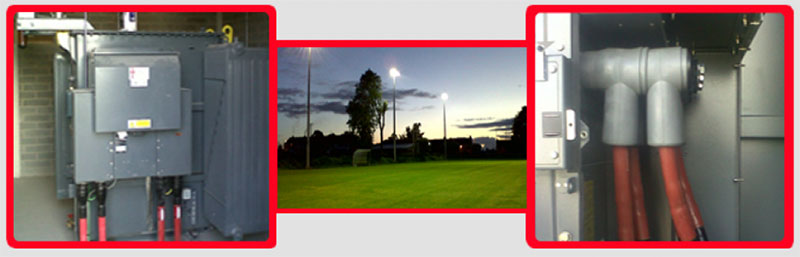

Supply and installation and commissioning of HV & LV switchgear, transformers etc
Over the last number of years, we have sourced and built strong relationships with a number of leading suppliers of HV & LV equipment and we can therefore offer a competitive supply and installation service for HV & LV Switchgear, oil filled transformers, Cast Resin transformers, Battery Tripping Units and Remote Switching Panels.

Within this service we provide the following:

• Advice for design, including guidance on cost effective solutions
• Supply, installation (under contract lift were required) and building of equipment.
• Commission of equipment.
• Provide protection / fault studies, including applying settings and testing.
• Arc Flash studies.
• Supply, Installation, terminating and testing of cabling (LV & HV).

We can also provide where necessary:

• Civil works to install bases for transformer and switchgear.
• Trenching & duct installation for cabling.
• Supply & installation of GRP enclosure switch rooms & Sub – stations.

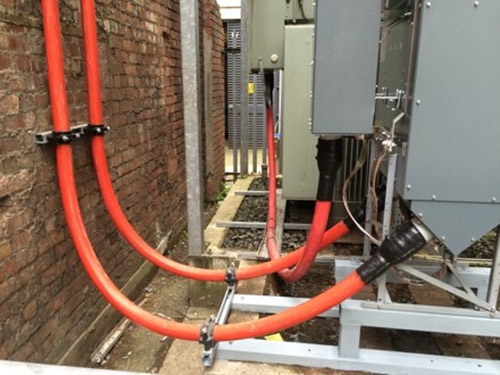

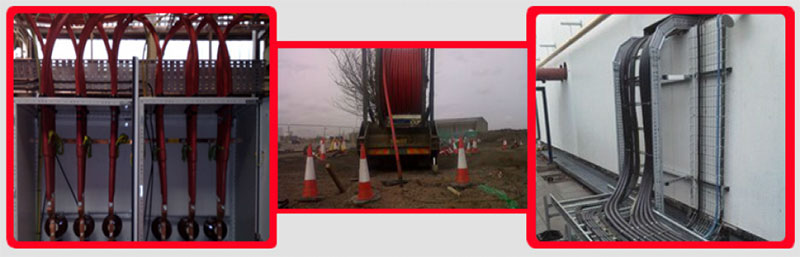

HV Cable installations up to 33kV Including Terminating & Jointing
We provide a complete H V cable installation service which includes cable installation, jointing, terminating and testing of all types of HV cabling including 3 core SWA, single core AWA and Triplex up to and including 33kV. Our team of personnel have a wealth of experience in carrying out installations in a safe and efficient manner to the highest standards.

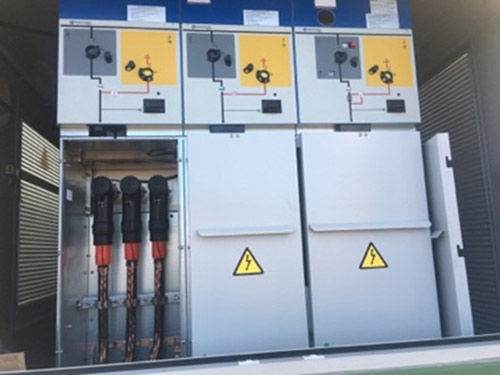

HV Maintenance and commissioning
We offer a full maintenance and testing service which includes but are not limited to:

HV&LV Switchgear to include but not limited to;

• Full visual inspection
• Testing of protection
• Partial discharge testing
• Proving correct operation of all parts including Circuit Breakers, Interlocks & remote switching etc
• Checking cable connections for tightness including Ductor tests of all connections
• Checking correct operation of battery tripping units

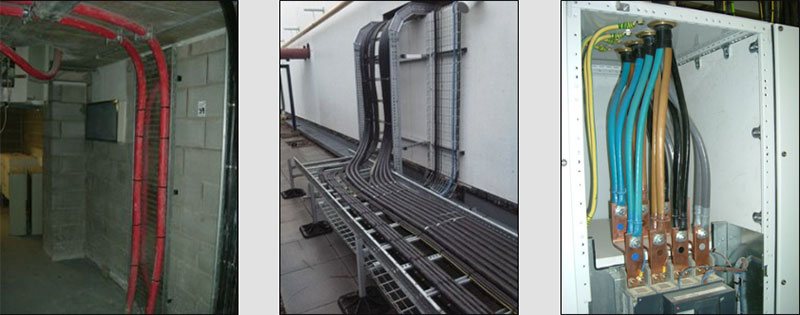

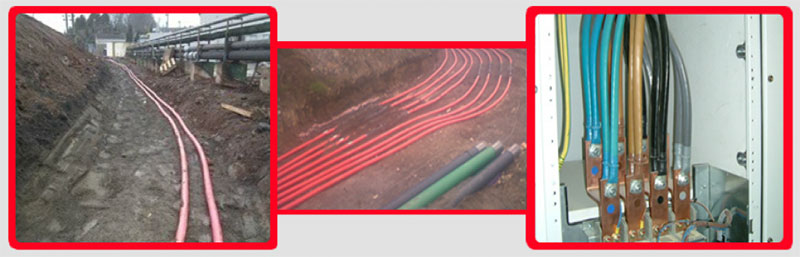

LV Cable installations including terminating & jointing
We provide a LV cable installation service ranging from single one day cable installations through to major cabling installations on medium to large scale projects both installing and terminating. Our well trained team of personnel have gained a wealth of experience working on a vast array of different projects giving the experience to meticulously plan and carryout cable installations in a safe and efficient manner to the highest standards in any environment installing cables in open trench, ducts and cable trays & ladder racking.

Arc Flash Hazard Evaluation & Mitigation Reports
These reports concern the evaluation of the electrical system in terms of prospective arc flash hazard, determining the amount of energy that would be released in an arc resulting from a flashover on the electrical switchboards. The report will provide information for the development of a strategy and protective measures for personnel engaged in work in the vicinity of exposed and energised electrical conductors.

The report will make recommendations in terms of protection settings, in order to reduce arc flash energy where possible, minimizing the severity of arcing faults, and at the same time optimizing the operation of protection of the facility’s network so that quality of supply is not unnecessarily impaired. It also provides information for the recommended PPE measures for personnel engaged in work in the vicinity of exposed and energised electrical conductors.

---
